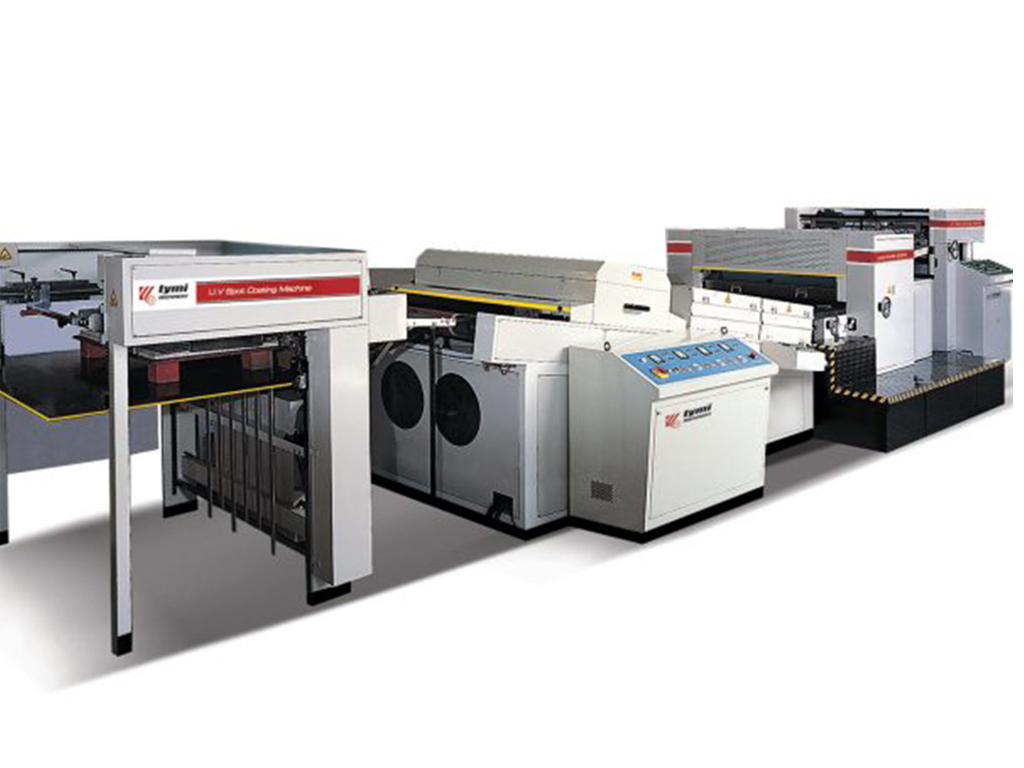

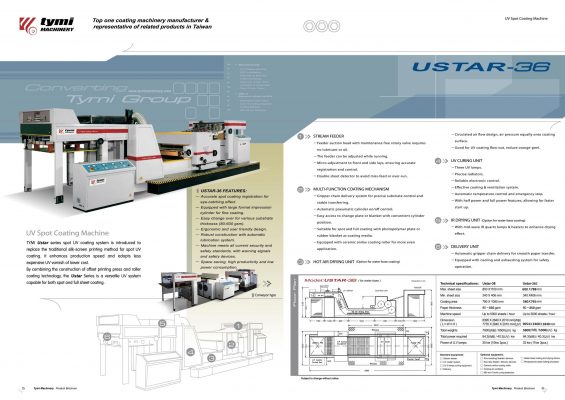

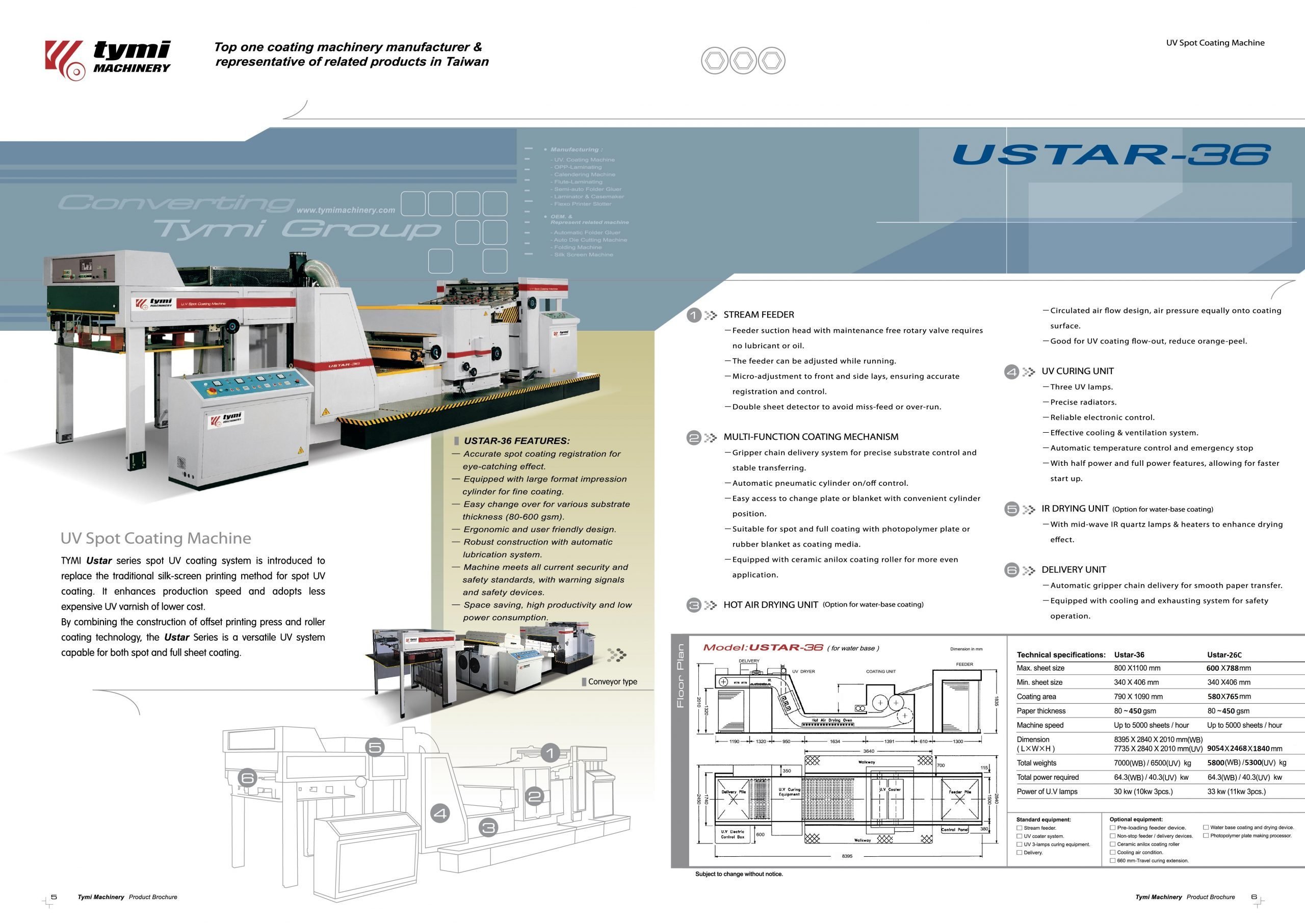

TYMI USTAR-36C UV
- You can find this machine in different sizes and with different equipment.
- Max. sheet : 800×1100mm
- Min. sheet : 340× 406mm
- Max. coating area :790×1090mm
- Sheet thickness : 80~450gsm
- Machine speed : Up to 5000 sheet/hour (Depending on sheet weight size and quality)
- Power required : 51. 62 kw (UV) + 17kw (WB) (380V AC 3φ 50HZ)
- Dimension(L × W × H) : 10453 × 2780 × 1790 mm
- Weight : 8860 kg
Equipment:
1. Auto feeder.
2. U.V coater.
3. U.V 3-lamps curing equipment. 4. Auto Delivery with cooling fans.
Optional equipment:
1. Pre-loading feeder device
2. Ceramic anilox coating roller. (160LPI)
3. Chamber system for ceramic roller.
4. Cooling Air condition.
5. Water base coating device with drying system.
Consisting of:
1. Automatic stream feeder.
– Max. pile height:1450 mm.
– Accurate entry of sheets into varnishing unit.
– Double sheet detector.
– Miss sheet control.
– Emergency stop.
– Overrun safety device at feeder.
– PLC人機介面控制系統 PLC program circuit control, control panel, and security system
2. Gripper varnishing Coater.
– blanket cylinder for 445mm diameter.
– 5000-Speed system.
– Varnish tank with pump for continuous varnish circulation. – Automatic lubricating device.
– Clamps for blanket mounting.
– 4 pcs gripper bar for sheet transfer to Teflon conveyor.
3. U.V curing equipment.
– 3-U.V lamps control panel.
– U.V Control panel.
– Half-lamp safety device.
– Safety control for over-temperature.
– Exhaust system with exhaust blower & ducts to extract fumes.
4. Delivery.
- – Delivery table with suction belts.
- – Max. pile height: 1250mm.
- – Upper fans support sheets in neat stack.
- – Sheet pneumatic cylinder jogging device and counter.
- – Photocell control for pile-down.
- – Hoisting limit switch with safety sensor for delivery pile.
- – Double leveled belt guiding device, suitable for thin paper conveyance.
An automatic detector of sheet mess and a unloading coming sheets device before the stacker is clear.
Description
Additional information
| Availability | Available for Ordering |
|---|---|
| Brand | Tymi |
| Condition | New |
| Model | USTAR |
| Status | Out of Stock |
